Factory test equipment
GTS3000-16M



GTS3000-16M-1216

User-friendly interface via a standard web browser no software installation required.

Programmable for a multitude of products.

Available functions:

  • Conductivity and diode scan multi-points machine learning sweep.
  • Readings:
  • Conductivity
  • Multi-points
  • Delays before readings
  • Intermittent connection detections
  • Wait for an event within a required time
  • Multi-point AC or DC voltages
  • Multi-point resistance
  • Multi-point 3.3V or 5V logic
  • Interactive Features:
  • Information entry
  • Query response
  • Timers
  • Multiple outputs RELAY switches
  • Test sequence organizer group.
  • Repetitive group for burn-in tests.
  • Capable of testing one or more products with the same sequencer program.
  • Automatic xls formated report generation.

GTS3040
CPU Module
GTS3041
128 Inputs Module
GTS3022
16 Relays Module

GTS3000-16M

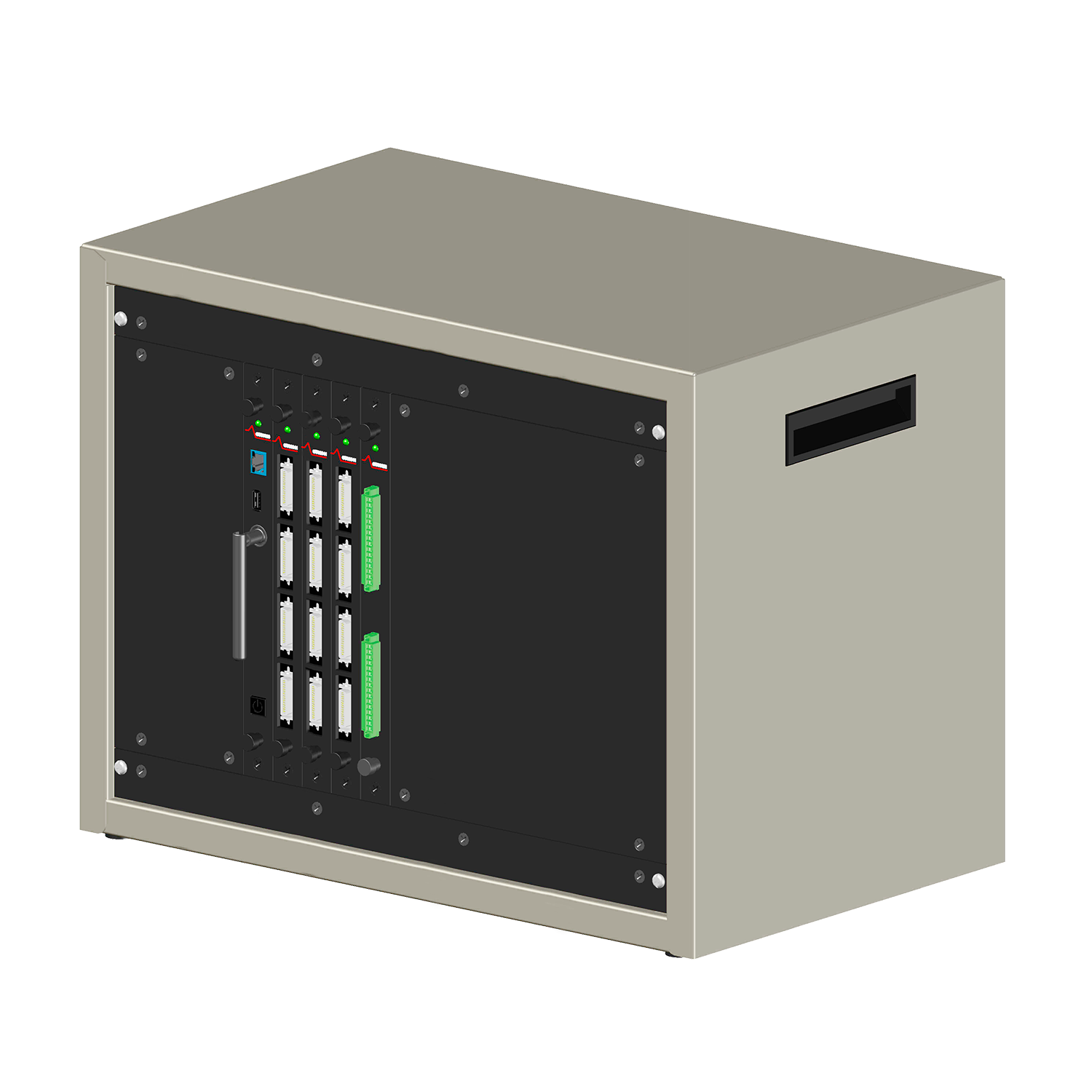

Standard GTS3000-16M-1308 cabinet 19” 4.1” (104.2mm) deep
Intelligent circuit backplane
Automatic module type detection
Capacity of 16 modules 1 CPU + combination of 15 input modules (test points) and output (relays).

GTS3040 CPU Module Control Unit

Broadcom BCM2711 quad-core Cortex-A72 (ARM v8)
8 GB eMMC Flash
2 GB LPDDR4 RAM 128 GB
128 GB User Flash Storage
Realtime clock
Wi-Fi 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ac
Bluetooth® 5.0, BLE
Wi-Fi & Bluetooth® Certifications
CE:20953-RPICM4, FCC:2ABCB-RPICM4

GTS3041 module

128 Inputs (test points)
4 MDR connectors 32 positions each
256 Solid State crosspoint switches 280µS

GTS3012 module

16 Outputs RELAY switches
2 COMBICON MC 16-position connectors
Switches from 0/250V AC/DC 2A

GTS3000-16M-1308
